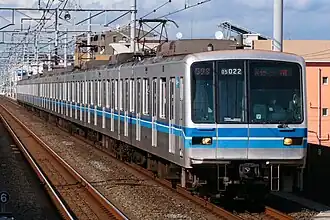

Tokyo Metro 05 series

Tokyo Metro 05 series
In service1988–now
Family nameA-Train (7 batch)
Lines servedTokyo Metro Tōzai Line (Tokyo Metro)
Specifications
Track gauge1,067mm

Tokyo Metro 05 series is a train operated on Tokyo Metro Tōzai Line.

Specifications

05-101 to 11305-11405-115 to 11805-119 to 12405-125 to 13305-134 to 13905-140 to 143
Max speed (kilometer/hour) 110120
Acceleration (km/h/s) 3.33.03.3
Deceleration (km/h/s) 3.5 (emergency 5.0)
Front end style Rectangular lights, no skirtRound lights, skirt
Headlights Sealed beamHID
Destination indicators Roller blind (converted Chiyoda branch line use LED display)3-colour LED
Interior LED displays 8 per car4 per car
Control system ChopperGTO-VVVFChopperIGBT-VVVF
Motor/trailer ratio 5M5T4M6T5M5T4M6T5M5T
Motor output (kW per motor) 160200160205165
Train power output (kW) 3,2003,2803,300
Gear ratio 5.73 (86:15)7.79 (109:14)5.73 (86:15)7.79 (109:14)6.21 (87:14)
Pantographs lozenge x5lozenge x4lozenge x5lozenge x4single arm x5Notesingle arm x3
Door width (m) 1.31.81.3
Driving controls Dual handlesingle handle
Seat configuration 3-7-7-7-32-6-6-6-24-6-7-6-43-7-7-7-3
  • Note: Sets 05-135 to 139 use 3 pantographs (other pantographs are not used).
