New Routemaster

New Routemaster

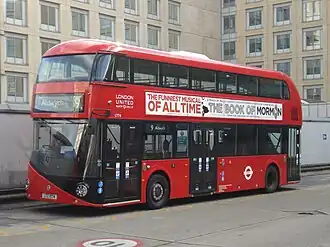

London United New Routemaster at Hammersmith in October 2013
Overview
ManufacturerWrightbus
Production2011–2017
1,000 units produced
Body and chassis
Doors3 doors
Floor typeLow-floor
Powertrain
EngineCummins ISBe 4.5 (euro spec)
4-cylinder, 4.5 L (270 cu in), 185 hp (138 kW) Euro V compliant[1][2]
Capacity80 (87 without wheelchair) (lower: 22 seats, 1 wheelchair space, 18 standing (25 standing without wheelchair); upper deck: 40 seats)
TransmissionDiesel in series
18 kWh[3] Microvast Lithium Titanate battery, Microvast LpTO,[4] Siemens ELFA2[5] electric traction motor[6]
Dimensions
Length11.23 m (36 ft 10+1⁄8 in)[5]
Width2.52 m (8 ft 3+1⁄4 in)
Height4.39 m (14 ft 4+7⁄8 in)
Curb weight12.65 t (12.45 long tons; 13.94 short tons)
Chronology
PredecessorAEC Routemaster (spiritual)
SuccessorWright SRM

The New Routemaster, (known as the New Bus for London, the Borismaster and the Boris Bus), is a hybrid diesel–electric double-decker bus. It has a low-floor. It was made from 2011 to 2017 by Wrightbus. It was made for services in London, England.

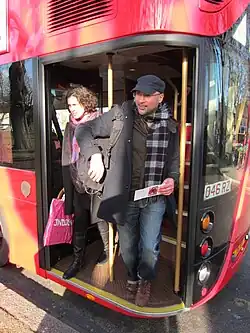

Passengers exiting from the rear platform in 2012

It is known for having a "hop-on hop-off" rear open platform similar to the AEC Routemaster but it was made to meet rules for modern buses and to meet accessibility rules.

History

First London AEC Routemaster
Arriva London New Routemaster

The AEC Routemaster bus was used in London from 1968 to 2005, it had a rear open platform and was monitored by the bus driver or the conductor. In 2005, it was withdrawn[7][8] and replaced with buses that didn't have a rear open platform.

In the 2008 London mayoral elections, many people complained about the withdrawal of the Routemasters, Boris Johnson made a campaign pledge to make a new Routemaster bus.[9]

In 2009, Wrightbus was awarded the contract to make the new Routemaster bus, the final design was announced in May 2010.[10][11]

The new Routemaster first entered service in February 2012 with Arriva London on route 38.[12]

The new Routemaster has three doors; the doors are at the front, in the middle and at the rear,[13] the rear doors can be closed by the driver. It has two staircases; one in the middle and one at the rear that goes down to the rear platform.

Operation

As of March 2021, 1,000 New Routemasters are in TfL operation.[14]

Current routes

New Routemasters currently run on the following routes:[15]

Former routes

New Routemasters previously operated on the following routes.

Route Last operator Peak vehicle requirement NRMs introduced NRMs withdrawn
10 London United 23 26 April 2014[46] 23 November 2018[23]
48 Arriva London 22 25 February 2017[47] 12 October 2019[48]
88 London General 23 24 August 2015[15] 29 March 2019[29]
91 Metroline 21 9 May 2016[49] November 2021[50]
111 Transport UK London Bus 24 28 August 2021 2023
N16 Metroline 6 April 2023

In November 2018, route 10 was withdrawn and its New Routemaster buses were transferred to route 27.[23] In March 2019, route 88 was restructured and its New Routemaster buses were transferred to route 87.[29] On 11 October 2019, route 48 was withdrawn.[48] Route 91's New Routemaster buses were transferred to Routes 17 and 332.[50]

Accidents and incidents

The New Routemaster has been involved in several accidents and incidents:

  • In September 2013, three people were seriously injured when a New Routemaster on route 11 crashed into three other buses and some parked cars on Chelsea Bridge Road.[51]
  • In June 2014, the driver of a car going at 100 mph was killed, one person was critically injured and 12 were hurt when the car hit a New Routemaster on route N38.[52]
  • In April 2015, a car was wedged in between two New Routemasters on Goodge Street. The occupants of the car were treated at the scene.[53]
  • In January 2016, 13 people were injured when two New Routemasters on routes 11 and 148 collided with each other and hit a van in Parliament Square.[54]
  • On 27 December 2019, a New Routemaster caught fire in Kennington, while working route 59 to Euston.[55]
  • On 5 March 2024, two people were injured after a New Routemaster on route 8 lost control and crashed into a shopfront on New Oxford Street in Westminster.[56]
  • On 19 May 2024, a new-style Routemaster on the 5 route between Canning Town and Romford crashed into the side of a house in Claughton Road, East Ham.[57]
